Journey to Work

A short description of the post.

I was inspired by David Robinson’s latest webcast in which he made a heatmap of French train delays using geom_tile and wanted to try it out for myself.

In this week's #tidytuesday screencast, I analyze delays in French train stations 🇫🇷🚄

I show how to create heatmaps of delays (inspired by @noccaea!), and embarrass myself with even the simplest French pronunciationshttps://t.co/zBrkIkdcCz #rstats pic.twitter.com/RI7ZpxV89X

— David Robinson (@drob) February 26, 2019

I don’t have a lot of opportunities to use heatmaps, but recently Statcan has released their Journey to Work data as part of the 2016 Census. I wanted to see if I could use a heatmap to understand the commuting patterns in communities in southern Ontario.

Load packages

library(tidyverse)
library(cancensus)

I downloaded the commuting table from statscan because I couldn’t find it using the cancensus package.

raw_commute <- read_csv("~/projects/R stuff/commute/98-400-X2016391_English_CSV_data.csv") %>%
    janitor::clean_names() %>%
    select(code = geo_code_por,
           live = geo_name,
           work = geo_name_1,
           total = dim_sex_3_member_id_1_total_sex)

# filter only those whose code starts w/ 35 (Ontario)
ontario_commute <- raw_commute %>%
    filter(str_detect(code, pattern = "^35"))

Download geography data

I was able to retrieve the working age population and census division geographies using cancensus

library(cancensus)
library(sf)

## Linking to GEOS 3.7.0, GDAL 2.3.2, PROJ 5.2.0

# create list of ontario census divisions to pass to cancensus
regions_list_ontario <- list_census_regions("CA16") %>%
  filter(str_detect(region, pattern = "^35"))  %>%
  as_census_region_list

## Querying CensusMapper API for regions data...

pop_data <- get_census("CA16",
                           regions = regions_list_ontario,
                           vectors = "v_CA16_61",
                           level = "CD",
                       geo_format = "sf", labels = "short") %>%
  janitor::clean_names()

# clean
pop_data %>%
  mutate(working_age = v_ca16_61) %>%
  mutate(code = as.double(geo_uid)) %>%
  select(code, working_age, shape_area, geometry) -> pop_data_clean

Joining the tables together

# remove commuting within cd, compute totals
ontario_commute %>%
  filter(live != work) %>%
  group_by(live) %>%
  mutate(total_commuters = sum(total),
         prop_commuters = total / total_commuters ) %>%
  ungroup() %>%
  left_join(pop_data_clean, by = "code") %>%
  group_by(work) %>%
  mutate(total_commuters_destination = sum(total)) %>%
  mutate(live_prop = total_commuters / working_age,
         work_prop = total / working_age ) %>%
  ungroup() -> ontario_commute_clean

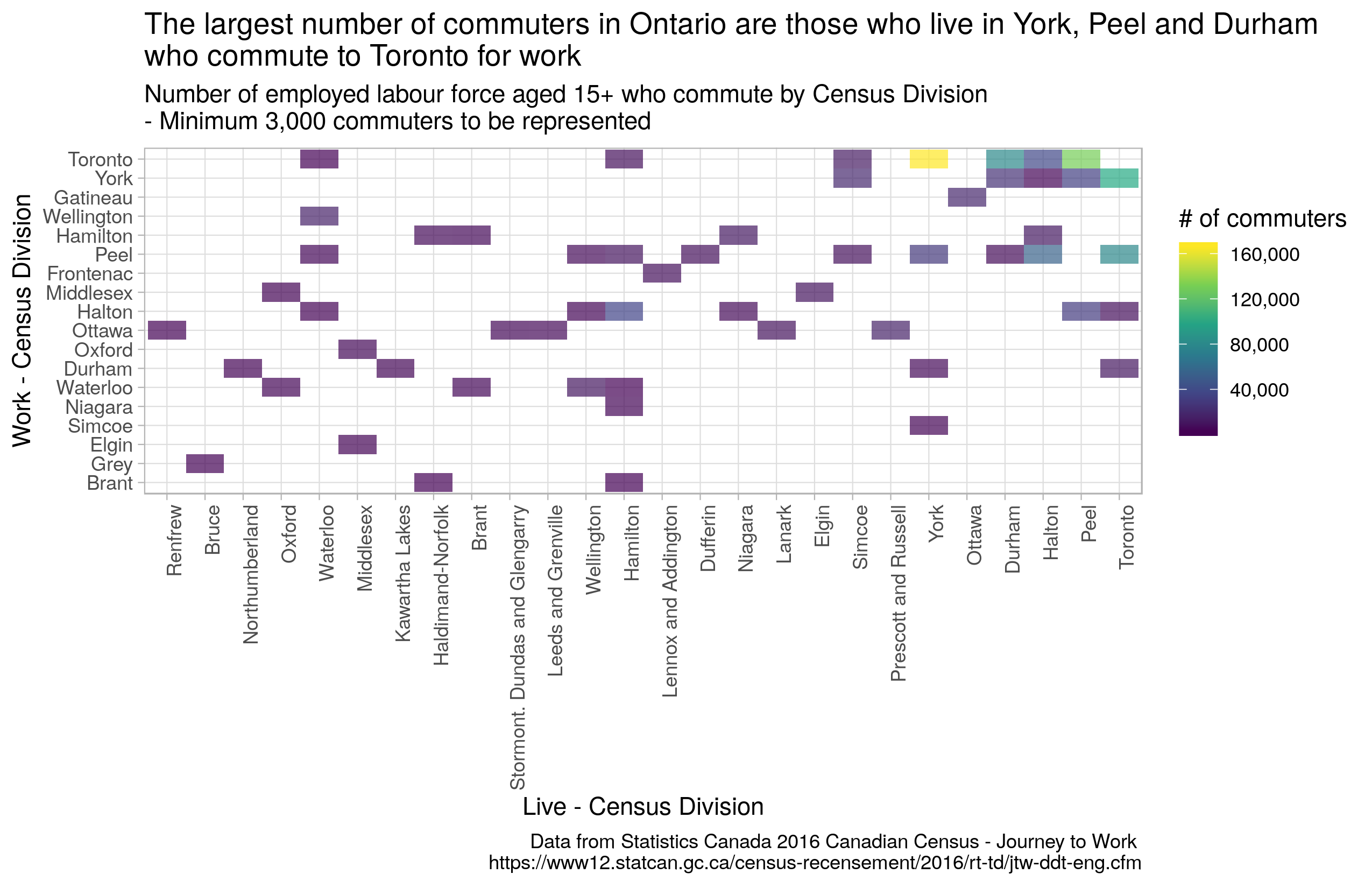

Create visualizations

Let’s see what visualizations will work.

ontario_commute_clean %>%
    filter(total >= 3000) %>%
    mutate(live = str_wrap(live, width = 15)) %>%
    mutate(live = fct_reorder(live, total)) %>%
    mutate(work = fct_reorder(work, total)) %>%
    ggplot(aes(live, work, fill = total)) +
    geom_tile(alpha = 0.7) +
    theme_light() +
    theme(axis.text.x = element_text(angle = 90, hjust = 1)) +
    scale_fill_viridis_c(labels = scales::comma_format()) +
    labs(fill = "# of commuters",
         title = "The largest number of commuters in Ontario are those who live in York, Peel and Durham who commute to Toronto for work",
         subtitle = "Number of employed labour force aged 15+ who commute by Census Division - Minimum 3,000 commuters to be represented",
         x = "Live - Census Division",
         y = "Work - Census Division",
         caption = "Data from Statistics Canada 2016 Canadian Census - Journey to Work \n https://www12.statcan.gc.ca/census-recensement/2016/rt-td/jtw-ddt-eng.cfm")

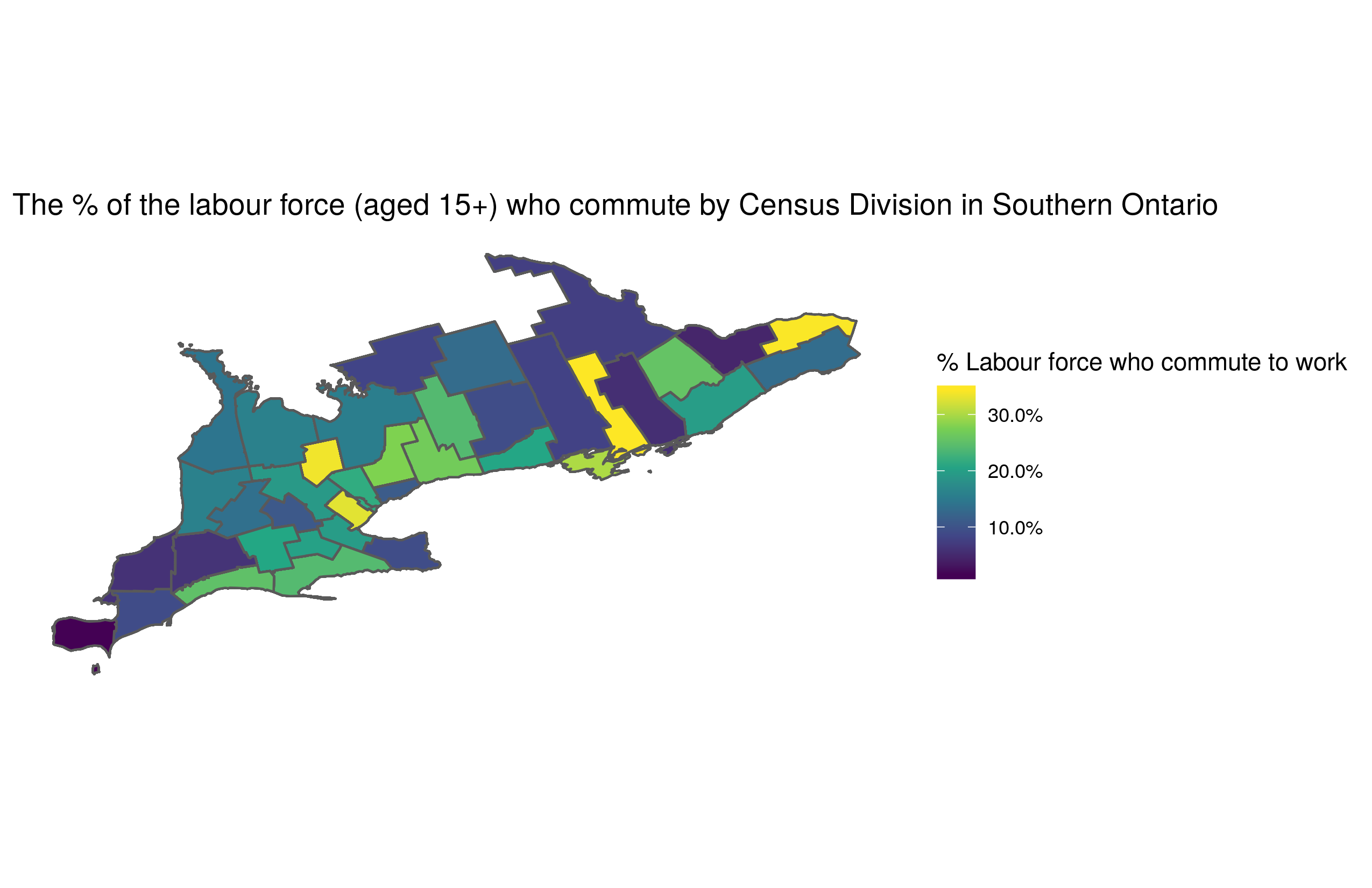

Map the proportions

I’m always trying to improve my mapping skills and geom_sf makes it a lot easier.

ontario_commute_clean %>%
  filter((!live %in% c("Rainy River", "Kenora", "Thunder Bay", "Algoma", "Nipissing",
                       "Cochrane", "Greater Sudbury / Grand Sudbury", "Manitoulin",
                       "Timiskaming", "Sudbury", "Parry Sound"))) %>%
  ggplot() +
  geom_sf(aes(fill = live_prop)) +
  scale_fill_viridis_c("% Labour force who commute to work", labels = scales::percent) + theme_minimal() +
  theme(panel.grid = element_blank(),
        axis.text = element_blank(),
        axis.ticks = element_blank()) +
  coord_sf(datum=NA) +
  labs(title = "The % of the labour force (aged 15+) who commute by Census Division in Southern Ontario")
